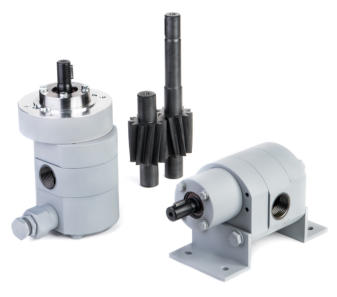

G-SERIES
Cast Iron
Standard gear pumps for oleodynamic application and not-
corrosive viscous fluids transfer. Offers the best combination of
quality versus price.
Fluid delivery
0 … 90 m3/h
Fluid viscosity
1 … 1’000’000 cSt
Working pressure
0 … 15|30|60 bar
Operating temperature
-40|-10 … +180|+250 °C
Availalbe ATEX 2014/34/UE

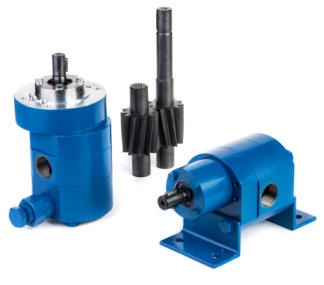

H-SERIES
Carbon Steel
Gear pumps for hydraulic applications in adverse environmental
conditions. Suitable for use on plant and machinery compliant
with API regulations.
Fluid delivery
0 … 90 m3/h
Fluid viscosity
1 … 1’000’000 cSt
Working pressure
0 … 15|30|60 bar
Operating temperature
-40|-10 … +180|+250 °C
Availalbe ATEX 2014/34/UE

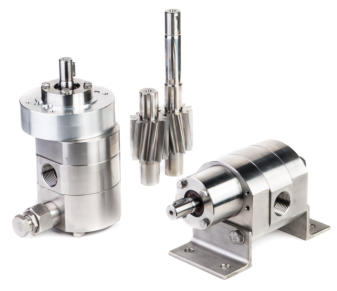

S-SERIES
Stainless Steel
Stainless steel gear pumps for corrosive, toxic or foods product.
Fluid delivery
0 … 90 m3/h
Fluid viscosity
1 … 1’000’000 cSt
Working pressure
0 … 15|30|60 bar
Operating temperature
-40|-10 … +180|+250 °C
Availalbe ATEX 2014/34/UE

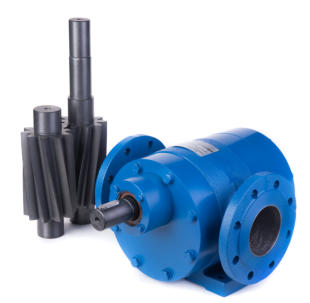

N-SERIES
Cast Iron
High delivery gear pumps for not-corrosive viscous fluids transfer.
They are usually used for pumping bitumen, pitches, tar,
bituminous products, sludge, fuels and oily water.
Fluid delivery
0 … 90 m3/h
Fluid viscosity
1 … 1’000’000 cSt
Working pressure
0 … 15| bar
Operating temperature
-40|-10 … +180|+250 °C
Availalbe ATEX 2014/34/UE

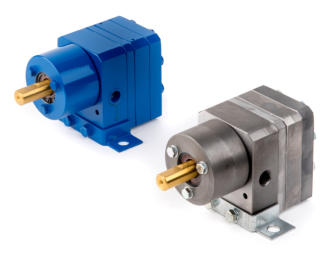

D-SERIES
Hardened Cast Iron
Small gear pumps for dosing and meterings of fluids at high
pressure. Used with excellent results in fuel injection in furnaces
and for the dosing of additives and dyes in oils and fuels.
Fluid delivery
0 … 1 m3/h
Fluid viscosity
1 … 1’000’000 cSt
Working pressure
0 … 70 bar
Operating temperature
-40|-10 … +180|+250 °C
Availalbe ATEX 2014/34/UE
GEAR PUMPS
Designed for metering, injections, vacuum extraction, lubrication and transfer
of a great variety of fluids in any industrial application. More than forty years
of experience and development are invested in this products range.
2024
COMPLETE CATALOGUE
DOWNLOAD PFD
